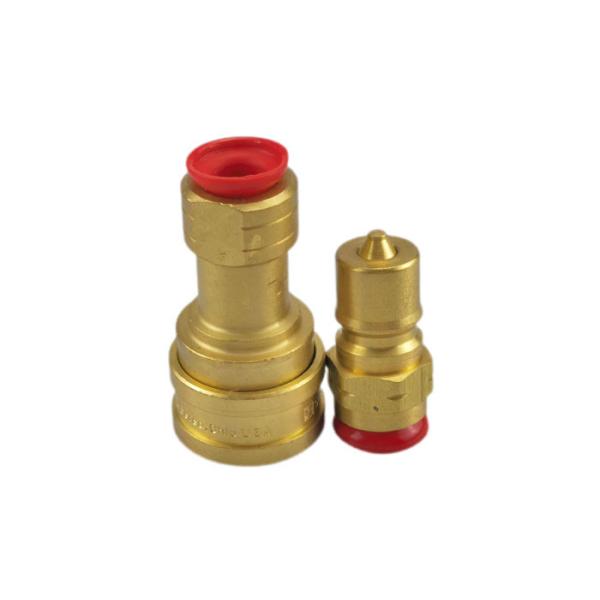

CNC Machining 3/8 Inch Brass Male Quick Connector

Name: CNC Machining 38 Inch Brass Male Quick Connector
Brand: carterberg
Price: 1 USD

Cheap CNC Machining 3/8 Inch Brass Male Quick Connector for sale

Brand Name : carterberg

Model Number : CB-SPB-1F

Certification : ISO9001

Place of Origin : Shanghai, China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 5000~20000 pc/month

Delivery Time : 7-20 work days

Packaging Details : carton

Product name : Brass Hydraulic Quick Coupler

Connection : Female/Male

Technics : CNC Machining

Size : 1/8' ~ 1'

Material : brass

Standard : ISO7241B

Contact Now

Medium-pressure High Performance Pneumatic And Hydraulic Brass Quick Coupling

Carterberg, one of the independent brands of PMC, represents diversified fluid connector series products, covering hydraulic quick couplings, pneumatic quick couplings and pneumatic couplings. Provide customers with high quality products, and OEM for international first-class brands.

CB-3 Series Quick Couplings are used across the spectrum of hydraulic applications. Primarily used with hydraulic fluid. CB-3 couplings are also used with chemicals, water, steam, and some gases.

Standard Materials

Brass, zinc-plated steel, stainless steel
Seals: NBR, Viton, EPDM

Features

Poppet valves available to prevent uncoupled leakage . Poppet valves open automatically when coupled within rated working pressure to keep the flow expeditely.
Critical parts are hardened for durability.
Compatible with PARKER 60 Series, FASTER HNV Series AEROQUIP FD45 Series and HANSEN HK Series.

CNC Machining 3/8 Inch Brass Male Quick Connector

Body Size	PARTNO.	Thread	A	B	Across Flats
1/8"	CB-S1B-1FG	1/8-27	1.91	0.98	0.56
1/8"	CB-S1B-1FN	1/8-27	1.91	0.98	0.56
1/4"	CB-S2B-1FG	1/4-19	2.26	1.17	0.75
1/4"	CB-S2B-1FN	1/4-18	2.26	1.17	0.75
3/8"	CB-S3B-1FG	3/8-19	2.56	1.42	0.88
3/8"	CB-S3B-1FN	3/8-18	2.56	1.42	0.88
1/2"	CB-S4B-1FG	1/2-14	2.96	1.86	1.13
1/2"	CB-S4B-1FN	1/2-14	2.96	1.86	1.13
3/4"	CB-S6B-1FG	3/4-14	3.48	2.22	1.31
3/4"	CB-S6B-1FN	3/4-14	3.48	2.22	1.31
1"	CB-S8B-1FG	1-11	4.13	2.61	1.75
1"	CB-S8B-1FN	1-11	4.13	2.61	1.75

CNC Machining 3/8 Inch Brass Male Quick Connector

Body Size	PARTNO.	Thread	C	D	E	HEX
1/8"	CB-P1B-1FG	1/8-27	1.26	0.65	0.44	0.56
1/8"	CB-P1B-1FG	1/8-27	1.26	0.65	0.44	0.56
1/4"	CB-P2B-1FG	1/4-19	1.52	0.87	0.56	0.75
1/4"	CB-P2B-1FN	1/4-18	1.52	0.87	0.56	0.75
3/8"	CB-P3B-1FG	3/8-19	1.76	1.01	0.61	0.88
3/8"	CB-P3B-1FN	3/8-18	1.76	1.01	0.61	0.88
1/2"	CB-P4B-1FG	1/2-14	2.03	1.30	0.76	1.13
1/2"	CB-P4B-1FN	1/2-14	2.03	1.30	0.76	1.13
3/4"	CB-P6B-1FG	3/4-14	2.36	1.52	0.71	1.31
3/4"	CB-P6B-1FN	3/4-14	2.36	1.52	0.71	1.31
1"	CB-P8B-1FG	1-11	2.85	1.88	0.97	1.63
1"	CB-P8B-1FN	1-11	2.85	1.88	0.97	1.63

Product Tags:

IATF16949 Brass Male Quick Connector

ISO9001 Brass Male Quick Connector

1in brass quick connect air fittings
